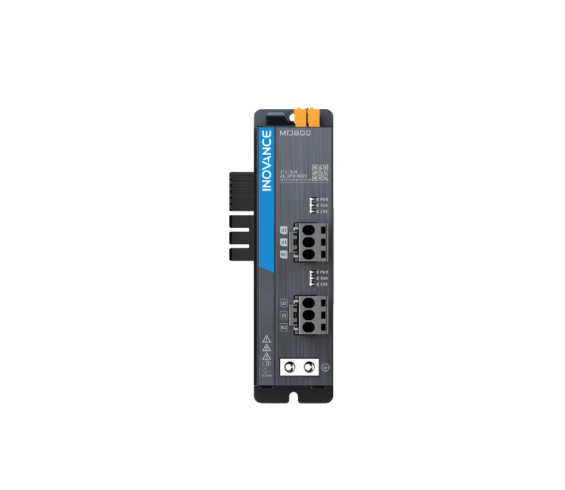

MD800-2-2T3S
Dual Inverter Units 1Phase 220V, Rated Power 2x0,4KW, Rated Output Current 3A, Size/ width 50mm with STO
Software:
Dati tecnici
Specifiche
| Control method |
Open Loop Vector Control Closed Loop Vector Control Open Loop V/F |
| Axes Control |
Dual-Axes |
| Rated Voltage [V] |
220 V single phase |
| Power (HD) |
0,4 kW |
| Current (HD) |
3 A |
| Power (ND) |
0,75 kW |
| Current (ND) |
3,5 A |
| STO |
V |
| Overload capacity |
150% (60 s) HD - 110% (60 s) ND |
| Max output frequency |
590 Hz |
| IP |
IP40 |
| Weight |
1.3 kg |
| Appropriate External EMC filter (C2) |
NA |
| Appropriate Ext. AC Input Reactor |
NA |
| Dimensions H x W x D |
182x49,5x160mm |
Accessori
MD38PC1
PLC card, compatible with Inovance PLC.
MD800-PBJ100M-W1
Cable support bracket for rectifier modules
MD800-PBJ50M-W1
Cable support bracket for drive modules. Applicable for both single and dual drive units.
FIL800-4T-045
EMC filter (To achieve C2 Level)
SI-ECAT1
EtherCAT communication card
SI-PN1
PROFINET communication card
IO-M1
I/O expansion card: 8 DI, 8 DO, 2 AI
MD800-AZB1
Mounting plate for easy assembly of a MD800 set in the electrical panel
IO-R1
Relay expansion card: 8 normally open relays
IO-R2
Relay expansion card: 4 relays with Normally Open and Normally Closed contacts, also called switching cont
SOP-20-810
Remote LCD keypad (including 3 m cable) - All
Download
Accesso richiesto
Per visualizzare i documenti presenti in questa sezione è necessario essere registrati e aver effettuato l'accesso.
Accedi o registrati
InoDriverShop_AC
MD800_FIyer Singles Web_EN_v0.2.pdf
3 Mb
MD800 3pH 400V_UL_CoC.pdf
363 Kb
MD800_Quick Installation and Commissioning Guide_EN_A02_20211122_19011494.pdf
24 Mb
MD800_System Design and Selection Guide_EN_A05_20211122_19011492.pdf
33 Mb
MD800_Communication Guide_EN_A01_20211122_19011496.pdf
27 Mb
MD800_EtherCAT Starting Guide_EN_v1.1_20211109.pdf
4 Mb
MD800_Function Guide_EN_A03_20211122_19011493.pdf
28 Mb
MD800 Inverter Unit.dwg
4 Mb
01019506-WXSTEP_B00(Dual axes Inverter Unit).stp
46 Mb
