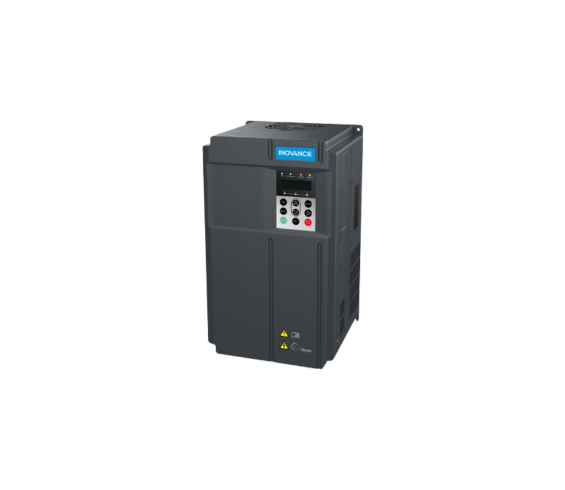

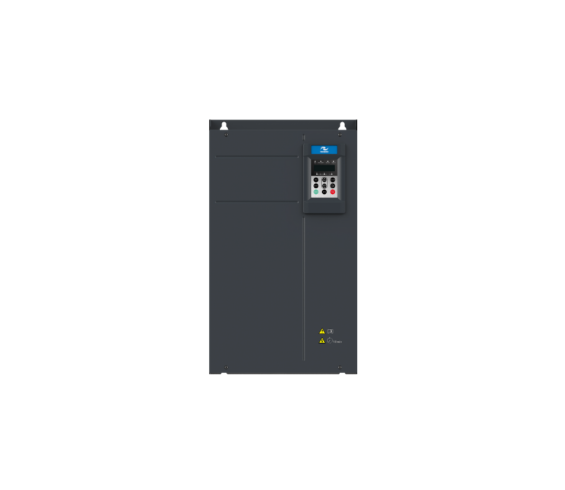

MD500T22G/30PB-PLUS-INT
Inverter size T5, 3Phase 380-480V, (Normal duty) Out Power 30kW, Output current 60A or (Heavy duty) Out Power 22kW, Output current 45A
Dati tecnici
Specifiche
Size |
Size T5 |
Control method |
Closed Loop Vector Control Open Loop V/F Open Loop Vector Control |
Axes Control |
Single-Axis |
Rated Voltage [V] |
400 V three phase |
Power (HD) |
22 kW |
Current (HD) |
45 A |
Power (ND) |
30 kW |
Current (ND) |
60 A |
Overload capacity |
150% (60 s) HD - 110% (60 s) ND |
Max output frequency |
599 Hz |
Built-in braking unit |
V |
IP |
IP20 |
Weight |
10 kg |
Appropriate External EMC filter (C2) |
FN 3258-75-34 |
Appropriate Ext. AC Input Reactor |
LR3 40-3/63 |
Dimensions H x W x D |
350x210x192mm |
Accessori
MDBUN-200-5T-INT
External braking unit, rated current 200A, for supply input voltage 380 to 480Vac AC drives
MDBUN-90-5T-INT
External braking unit, rated current 90A, for supply input voltage 380 to 480Vac AC drives
MD38CAN1
CANLink Bus Card, supports only CANlink.
MD38CAN2
CANopen Bus Card, Supports only CANopen.
MD38DP2
PROFIBUS-DP communication card.
MD38TX1
Modbus-RTU communication card.
MD500-ECAT
EtherCAT Interface card, 2x RJ45 (EtherCAT IN/OUT)
MD500-PN1
PROFINET communication card.
MD500-EN1
Ethernet/IP communication card.
MD38IO1
I/O extension card 1, provides: 5x DI, 1x AI, 1x relay output, 1x DO, 1x AO, Modbus-RTU and CANlink.
MD38IO2
I/O extension card 2, provides 3x extra DI terminals.
MD38IO3
I/O extension card 3, provides 3x DI, 1x Relay (NO) and Modbus-RTU Interface
MDCAB
Connection cable for LCD/LED remote control 3mt
MD32NKE1
Remote LED keypad for MDBUN Series, MD290, MD500, MD310, MD500E, for parameter programming and monitoring, works with standard RJ45 cable (MDCAB 3.0m inluded)
MDKE9
Remote LCD text indicator for MD200, MD290, , MD310, MD500, MD500-PLUS, MD520, CS710, for parameter programming, parameter copy and backup, USB gateway, works with standard RJ45 cable (MDCAB 3.0m inluded)
CP600-BASE1
MDKE9 keypad installation base on the cabinet door
MD38PC1
PLC card, compatible with Inovance PLC.
FN3258-75-34
Ultra-compact Line Filter EMC/RFI, Three-phase, 75 A, 480/277Vac
LR3 40-3/63
Line reactor, three-phase, 0-690 Vac, 63 A, 50-60 Hz, uk:3%@400 V, 0,35 mH › Ensuring the short-circuit voltage of 3 - 5 % to the mains› Power harmonic damping› Starting current limitation›
Download
Accesso richiesto
Per visualizzare i documenti presenti in questa sezione è necessario essere registrati e aver effettuato l'accesso.
Accedi o registrati
InoDriverShop_AC
MD500-PLUS_Brochure Singles Web_EN_v0.4.pdf
3 Mb
MD500-PLUS_Installation Guide_EN_A05_19011582.pdf
24 Mb
MD500-PLUS_Hardware Guide_EN_A00_19011577.pdf
35 Mb
MD500-PLUS_Quick Installation and Commissioning Guide_EN_A03_19011581.pdf
11 Mb
MD500-PLUS_Software Guide_EN_A04_19011580.pdf
10 Mb
MD500-PLUS-CoC T5-T8 UL.pdf
993 Kb
