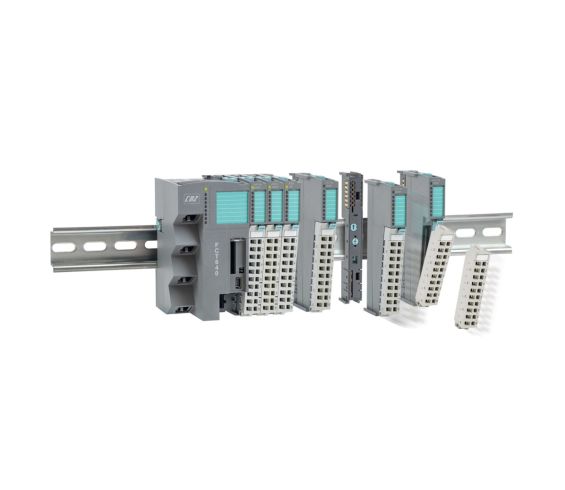

FCT640.2100.106.400

Motion Controller up to >16 Axes with CODESYS SOFT MOTION + CNC + WEB VISU 1x RJ45 ETH (debug), 2x RJ45 EHT Configurable Fieldbus, 1x RJ45 CAN

Software:

Specifiche

Controller type	Controller modulare
Motion control functions	Soft Motion CNC Web Visu
Processor	RISC dual core 64bit, 1.0 GHz three level cache
Fieldbus	Modbus RTU master/slave 2x RJ45 EHT Configurable Fieldbus 1x RJ45 CAN
Network Connectivity	OPC-UA (available soon) Modbus TCP Master/Slave Communications based on UDP-TCP WEB server PLC Handler
Certified	CE
Point-to-point positioning	256 axes
CAM control	>16 Axes
Extension modules	Up to 64
I/O Points	1024P
Program Storage Space	1 GB
Data Storage Space	1 GB
Memory	SD-Card Interface Up to 32 G
Programming	IEC 61131-3
