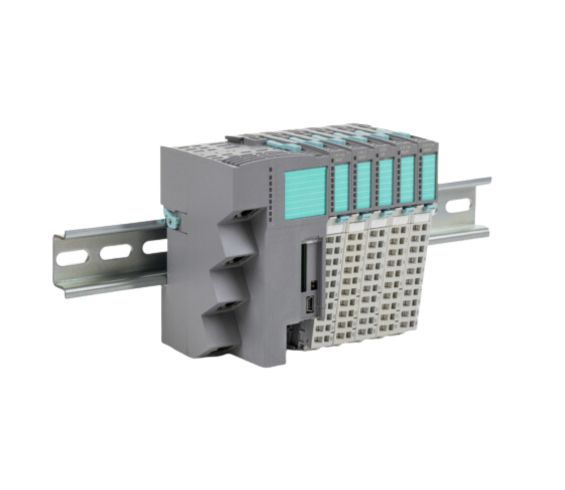

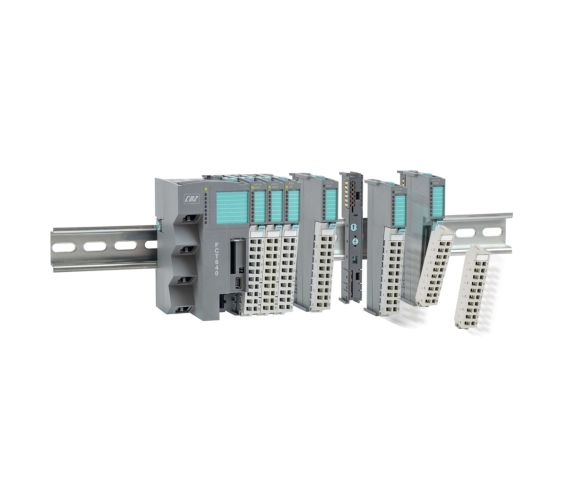

FCT640.2100.105.100

Motion Controller up to 4 Axes with CODESYS SOFT MOTION + WEB VISU 1x RJ45 ETH (debug), 2x RJ45 EHT Configurable Fieldbus, 1x RJ45 CAN

Software:

Specifiche

Controller type	Controller modulare
Motion control functions	Web Visu Soft Motion
Processor	RISC dual core 64bit, 1.0 GHz three level cache
Fieldbus	2x RJ45 EHT Configurable Fieldbus 1x RJ45 CAN Modbus RTU master/slave
Network Connectivity	PLC Handler OPC-UA (available soon) Modbus TCP Master/Slave Communications based on UDP-TCP WEB server
Certified	CE
Point-to-point positioning	256 axes
CAM control	4 axes
Extension modules	Up to 64
I/O Points	1024P
Program Storage Space	1 GB
Data Storage Space	1 GB
Memory	SD-Card Interface Up to 32 G
Programming	IEC 61131-3
