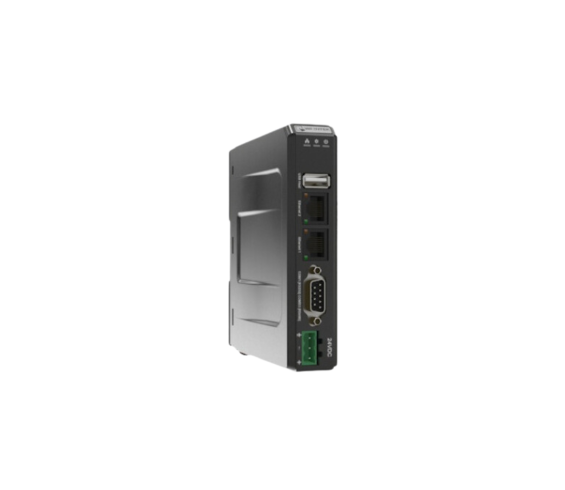

cMT-SVR-200

Server HMI con CPU 600MHz, Wi-Fi industriale, USB, Ethernet, RS232/485. Ideale per applicazioni HMI wireless e remote.

Software:

Specifiche

Type of module	Senza Display
Applications	Higher performance
Dimensions W x H x D	27 x 130 x 115 mm
Processor	32-bit RISC 600MHz
RTC	Built-in
Flash	256 MB
RAM	256 MB
SD Card Slot	SD/SDHC
USB Host	USB 2.0 x 1
Ethernet	10/100/1000 Base-T x 1 IEEE 802.11 b/g/n
Weight	Approx. 0.18 kg
COM A	RS-232 2W
COM B	RS-485 2W/4W
COM C	RS-485 2W
Modbus RTU/TCP	Yes
Input Power	10.5~28VDC
Enclosure	Plastic
Mount	35 mm DIN rail mounting
Protection Structure	IP20
Storage Temperature	-20° ~ 70° C (-4° ~ 158° F)
Operating Temperature	-10° ~ 55° C (14° ~ 131° F)
Relative Humidity	10% ~ 90% (non-condensing)
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
CE	CE marked
UL	cULus Listed
WI-FI	IEEE 802.11 b/g/n 802.11b: max 19.76 dBm 802.11g: max 19.93 dBm 802.11n: max 19.99 dBm
Teleassistance	EasyAccess 2.0 (Optional)
Database Recipes	included
SQL Query	included
Client OPC UA	included
MQTT IoT	included
VNC	included
