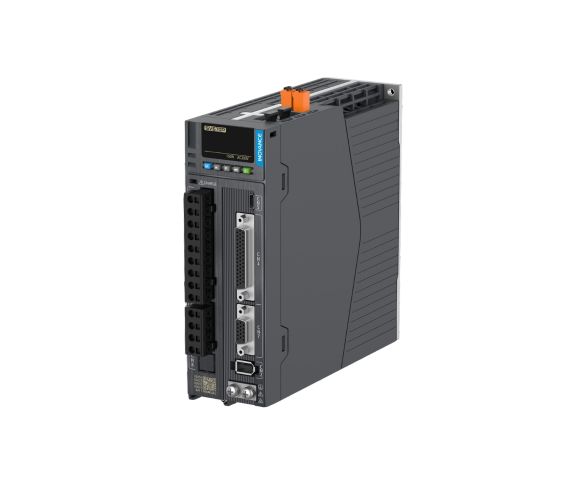

SV670PS5R5I-FS
Brushless Drive Un=1x 240VAC, In=5.5A, Imax=16.9A, Pulse Direction/Analogue, STO, size B
Software:
-2.jpg?1716795632)
Dati tecnici
Specifiche
| Protection |
IP20 |
| Size |
Size B |
| Rated Voltage |
230 V single phase |
| Axes Control |
Single-Axis |
| Communications |
Pulse/Direction |
| Range Power |
Up tp 750 W |
| Rated Power |
0,55 kW |
| Device profile |
CiA® 402 |
| Rated Current |
5,5 Arms |
| peak current |
16,90 Arms |
| SAFETY |
STO Safe Torque Off SIL3 |
| Feedback |
Absolute encoder |
| Cycle time |
125 μs |
| Carrier frequency |
12 kHz |
| Current loop cycle time |
1.6 μs |
| Speed loop cycle time |
62.5 μs |
| Position loop cycle time |
62.5 μs |
| Current loop |
4.5 kHz |
| Dimensions H x W x D |
170X50X173 mm |
| Appropriate External EMC filter (C2) |
FN 2090-8-06 |
| Appropriate External AC Input Reactor |
NA |
Accessori
S6-C4
Battery Box SV660N/SV820N/IS620
S6-L-T00-3.0
Communication cable for PC communication to SV660N, 3m length
Download
Accesso richiesto
Per visualizzare i documenti presenti in questa sezione è necessario essere registrati e aver effettuato l'accesso.
Accedi o registrati
InoDriverShop_Servo
SV670P_FIyer_Spreads Web_EN_v0.1_19120267.pdf
1 Mb
SV670P_Hardware Guide_EN_A04_19011854_20220801.pdf
41 Mb
SV670P_Function Guide_EN_A02_19011866_20220601.pdf
17 Mb
SV670P_Communication Guide_EN_A02_19011871_20220701.pdf
38 Mb
SV670P_Commissioning Guide_EN_A02_19011856_20220601.pdf
18 Mb
