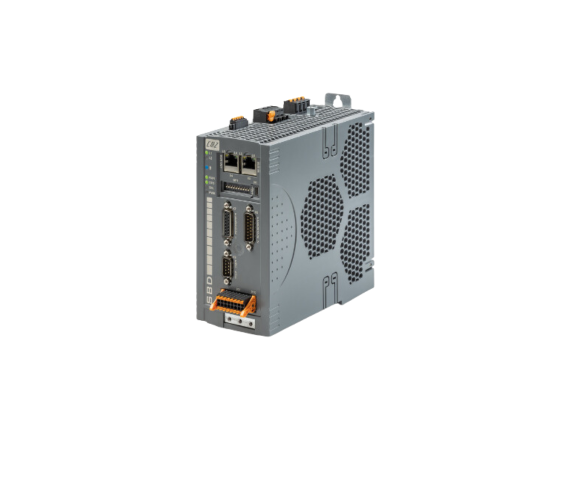

SBD400050/ETC.0000000
Brushless Drive 400Vac 3-Phase, EtherCAT Interface, 2 KW, 5A Rated current, 10A Peak current
Software:
SD Setup
Dati tecnici
Specifiche
| Protection |
IP20 |
| Size |
Size M |
| Rated Voltage |
400 V three phase |
| Axes Control |
Single-Axis |
| Communications |
EtherCAT |
| Range Power |
Up tp 3 KW |
| Rated Power |
2,1 KW |
| Functionalities_x000D_ |
Internal IEC programmability |
| Device profile |
CiA® 402 |
| Rated Current |
5 Arms |
| peak current |
10 Arms |
| SAFETY |
STO Safe Torque Off SIL3 |
| I/O |
1 AO +-10V 1 AI 0-10V 7 DI 24V PNP 3 DO 24V PNP 200 mA 1 encoder input TTL |
| Feedback |
Resolver TTL incremental encoder TTL incremental encoder + HES Hiperface absolute encoder |
| Thermal sensor |
PT1000 KTY84-130 PTC switch |
| Cycle time |
125 μs |
| Carrier frequency |
10 kHz |
| Dimensions H x W x D |
178,3X83,6X189,2 mm |
| Appropriate External EMC filter (C2) |
Integrated Connection for external breaking resistor |
