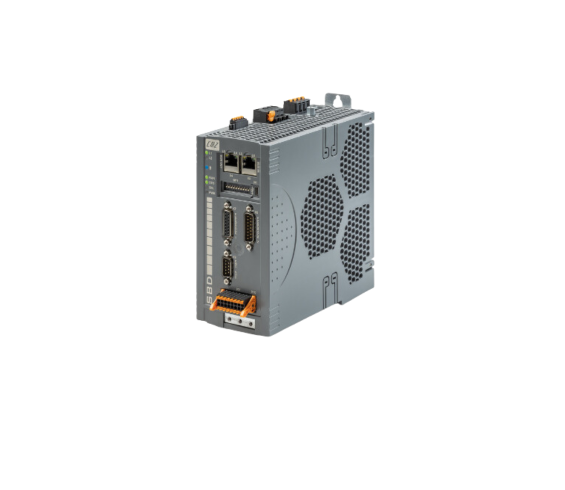

SBD230085/PNT.0000010

Brushless Drive 230Vac 1-Phase, ProfiNET Interface, 1,1 KW, 8,5A Rated current, 17A Peak current, kit Connector

Software:

Specifiche

Protection	IP20
Size	Size M
Rated Voltage	400 V three phase
Axes Control	Single-Axis
Communications	PROFINET
Range Power	Up tp 1,5 KW
Rated Power	1,5 KW
Functionalities_x000D_	Internal IEC programmability
Device profile	CiA® 402
Rated Current	8,5 Arm
peak current	17 Arms
SAFETY	STO Safe Torque Off SIL3
I/O	1 AI 0-10V 7 DI 24V PNP 3 DO 24V PNP 200 mA 1 encoder input TTL 1 AO +-10V
Feedback	Resolver TTL incremental encoder TTL incremental encoder + HES Hiperface absolute encoder
Thermal sensor	PTC switch PT1000 KTY84-130
Cycle time	125 μs
Carrier frequency	10 kHz
Dimensions H x W x D	178,3X83,6X189,2 mm
Appropriate External EMC filter (C2)	Integrated Connection for external breaking resistor
