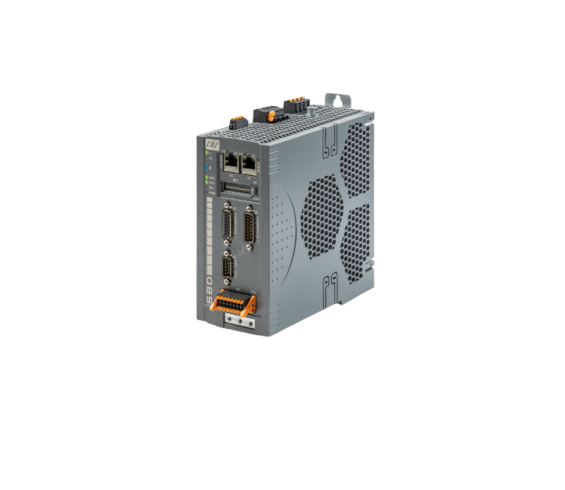

SBD230050/PLC.0000010

Brushless Drive 230Vac 1-Phase, Pulse/Direction Interface, 0,7KW, 5A Rated current, 10A Peak current, kit Connector

Software:

Specifiche

Protection	IP20
Size	Size M
Rated Voltage	230 V single phase
Axes Control	Single-Axis
Communications	Pulse/Direction
Range Power	Up tp 15 KW
Rated Power	5 Arms
Functionalities_x000D_	Internal IEC programmability
Device profile	CiA® 402
Rated Current	5 Arms
peak current	10 Arms
SAFETY	STO Safe Torque Off SIL3
I/O	1 AO +-10V 1 AI 0-10V 7 DI 24V PNP 3 DO 24V PNP 200 mA 1 encoder input TTL
Feedback	Resolver TTL incremental encoder TTL incremental encoder + HES Hiperface absolute encoder
Thermal sensor	KTY84-130 PTC switch PT1000
Cycle time	125 μs
Carrier frequency	10 kHz
Dimensions H x W x D	178,3X83,6X189,2 mm
Appropriate External EMC filter (C2)	Integrated Connection for external breaking resistor
