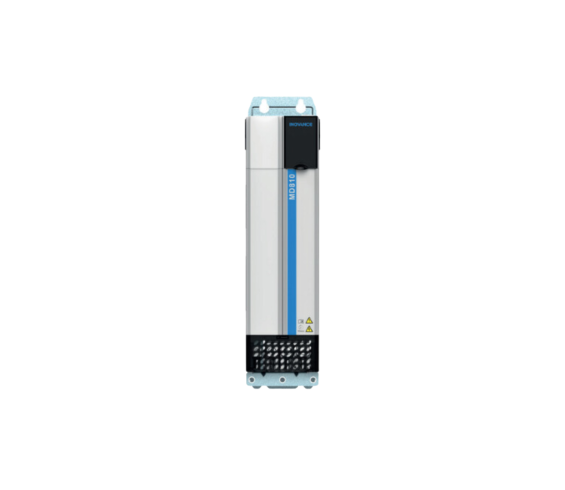

MD810-50M4T5.5G201-INT
Modbus Single Drive In=13A, Pn=5,5kW, A/B/Z Encoder, RS485, STO, IP20
Software:
Dati tecnici
Specifiche
| Control method |
Closed Loop Vector Control Open Loop V/F Open Loop Vector Control |
| Axes Control |
Single-Axis |
| Rated Voltage [V] |
400 V three phase |
| Communication |
RS485 (Modbus-RTU) CANopen CANlink and PROFINET gateway to CANopen |
| Rated Output Current |
13 A |
| Rated Input Current |
17 A |
| Rated Output Power |
5,5 kW |
| STO |
V |
| Overload capacity |
150% (for 60 s); 178% (for 2 s) |
| Max output frequency |
500 Hz |
| IP |
IP20 |
| Weight |
4 kg |
| Appropriate External EMC filter (C2) |
NA |
| Appropriate Ext. AC Input Reactor |
NA |
| Dimensions H x W x D |
400x50x305mm |
Accessori
MD810-AZJ50M-W1
Through-hole mounting brackets for PSU and Drives - Size 1 (W: 50 mm)
MD810-AZJ50M-W2
Through-hole mounting brackets for PSU and Drives - Size 2 (W: 100 mm)
MD810-AZJ50M-W3
Through-hole mounting brackets for PSU and Drives - Size 3 (W: 200 mm)
MD810-AZJ50M-W4
Through-hole mounting brackets for PSU and Drives - Size 4 (W: 300 mm)
MD810-PBJ50M-W1
Cable support bracket for PSU and Drives - Size 1 (W: 50 mm)
MD810-PBJ50M-W2
Cable support bracket for PSU and Drives - Size 2 (W: 100 mm)
MD810-PBJ50M-W3
Cable support bracket for PSU and Drives - Size 3 (W: 200 mm)
MD810-PBJ50M-W4
Cable support bracket for PSU and Drives - Size 4 (W: 300 mm)
MD810-DLB-W1
Air guide plate for PSU and Drives - Size 1 (W: 50 mm)
MD810-DLB-W2
Air guide plate for PSU and Drives - Size 2 (W: 100 mm)
MD810-DLB-W3
Air guide plate for PSU and Drives - Size 3 (W: 200 mm)
MD810-DLB-W4
Air guide plate for PSU and Drives - Size 4 (W: 300 mm)
MD810-CON1
Additional DC bus terminals for PSU and Drives - PSU (sizes 1-2). Drives (size 1)
MD810-CON2
Additional DC bus terminals for PSU and Drives - PSU (sizes 3-4). Drives (sizes 2-4)
C45590-GNCN-C2500024
Communication (Modbus-RTU, CANopen) cable (RJ45 connectors) between modules - Size 1 (W: 50 mm)
C45590-GNCN-C2500025
Communication (Modbus-RTU, CANopen) cable (RJ45 connectors) between modules - Size 2 (W: 100 mm)
C45590-GNCN-C2500035
Communication (Modbus-RTU, CANopen) cable (RJ45 connectors) between modules - Size 3 (W: 200 mm)
C45590-GNCN-C2500055
Communication (Modbus-RTU, CANopen) cable (RJ45 connectors) between modules - Size 4 (W: 300 mm)
C45590-GNCN-C2500080
Communication (Modbus-RTU, CANopen) cable (RJ45 connectors) between modules - Size 5 (355 kW PSU)
INOV-SU-30
Soft-charging unit for drive modules - Single: 1.5-7.5 kW. Dual: 1.5-5.5 kW
INOV-SU-60
Soft-charging unit for drive modules - Single: 11-22 kW. Dual: 7.5-11 kW
INOV-SU-100
Soft-charging unit for drive modules - Single: 30-37 kW. Dual: 15-18.5 kW
INOV-SU-170
Soft-charging unit for drive modules - Single: 45-75 kW
SOP-20-810
Remote LCD keypad (including 3 m cable) - All
C45590-GNCN-C25003
Remote LCD keypad spare cable (3 m) - All
SOP-20-MP-IP20
LCD keypad mounting base for installation on cabinet door - All
