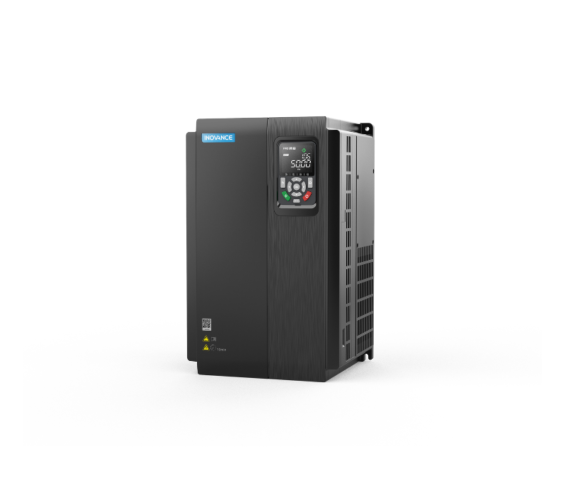

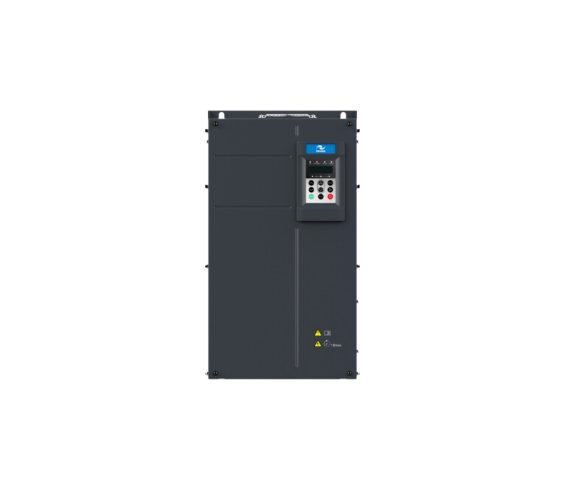

MD520-4T37BS-INT
Inverter size T6, 3Phase 380-480V, (Normal duty) Out Power 45kW, Output current 91A or (Heavy duty) Out Power 37kW, Output current 75A
Dati tecnici
Specifiche
Size |
Size T6 |
Control method |
Closed Loop Vector Control Open Loop V/F Open Loop Vector Control |
Axes Control |
Single-Axis |
Rated Voltage [V] |
400 V three phase |
Power (HD) |
37 kW |
Current (HD) |
75 A |
Power (ND) |
45 kW |
Current (ND) |
91 A |
STO |
V |
Overload capacity |
150% (60 s) HD - 110% (60 s) ND |
Max output frequency |
599 Hz |
Built-in braking unit |
V |
IP |
IP20 |
Weight |
17.5 kg |
Internal EMC Filter |
Category C3 |
Appropriate External EMC filter (C2) |
FN 3258-100-35 |
Appropriate Ext. AC Input Reactor |
LR3 40-3/70 |
Dimensions H x W x D |
400x250x220 mm |
Accessori
MD38PG4
Resolver card, 7Vrms,12bit, no emulation output,10kHz, DB9 connector
MD38PGMD
Encoder card, 5V open collector/differential encoder A+,A-,B+,B-, Z+,Z-, multi
emulated output, 100kHz/500kHz, terminal connect
MDBUN-200-5T-INT
External braking unit, rated current 200A, for supply input voltage 380 to 480Vac AC drives
MDBUN-60-5T-INT
External braking unit, rated current 60A, for supply input voltage 380 to 480Vac AC drives
MDBUN-90-5T-INT
External braking unit, rated current 90A, for supply input voltage 380 to 480Vac AC drives
MD38CAN1
CANLink Bus Card, supports only CANlink.
MD38CAN2
CANopen Bus Card, Supports only CANopen.
MD38DP2
PROFIBUS-DP communication card.
MD38TX1
Modbus-RTU communication card.
MD500-ECAT
EtherCAT Interface card, 2x RJ45 (EtherCAT IN/OUT)
MD500-PN1
PROFINET communication card.
MD-SI-DP1
PROFIBUS-DP communication card. (designed for smaller frames)
MD500-EM1
Modbus TCP option card
MD500-EN1
Ethernet/IP communication card.
MD38IO1
I/O extension card 1, provides: 5x DI, 1x AI, 1x relay output, 1x DO, 1x AO, Modbus-RTU and CANlink.
MD38IO2
I/O extension card 2, provides 3x extra DI terminals.
MD38IO3
I/O extension card 3, provides 3x DI, 1x Relay (NO) and Modbus-RTU Interface
MDCAB
Connection cable for LCD/LED remote control 3mt
MD32NKE1
Remote LED keypad for MDBUN Series, MD290, MD500, MD310, MD500E, for parameter programming and monitoring, works with standard RJ45 cable (MDCAB 3.0m inluded)
MDKE9
Remote LCD text indicator for MD200, MD290, , MD310, MD500, MD500-PLUS, MD520, CS710, for parameter programming, parameter copy and backup, USB gateway, works with standard RJ45 cable (MDCAB 3.0m inluded)
CP600-BASE1
MDKE9 keypad installation base on the cabinet door
MDPCKIT02
AC drive PC communication kit, connects to MD200/290/310/500/380/380L/IS580 via RJ45
MD38PC1
PLC card, compatible with Inovance PLC.
FN3258-100-35
Ultra-compact Line Filter EMC/RFI, Three-phase, 100 A, 480/277Vac
