MD520-4T315S-INT

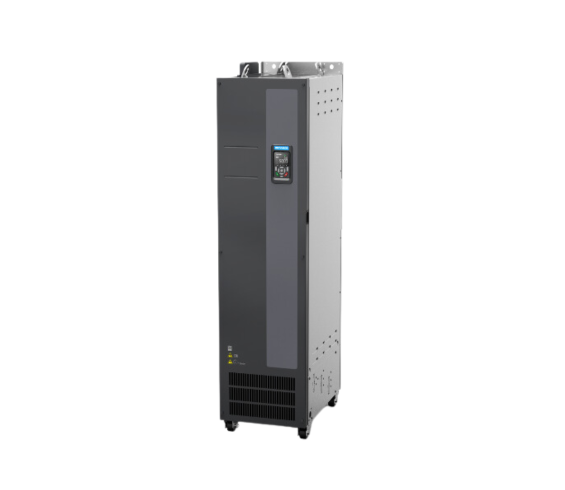

Inverter size T12, 3Phase 380-480V, (Normal duty) Out Power 400kW, Output current 725A or (Heavy duty) Out Power 315kW, Output current 585A

MD520_Brochure Singles Web_EN_v0.1.pdf

4 Mb

Software:

Dati tecnici

Specifiche

Size	Size T12
Control method	Open Loop Vector Control Closed Loop Vector Control Open Loop V/F
Axes Control	Single-Axis
Rated Voltage [V]	400 V three phase
Power (HD)	315 kW
Current (HD)	585 A
Power (ND)	400 kW
Current (ND)	725 A
STO	V
Overload capacity	150% (60 s) HD - 110% (60 s) ND
Max output frequency	599 Hz
Built-in braking unit	MDBUN-200-5T x3
IP	IP20
Weight	185 kg
Internal EMC Filter	Category C3
Appropriate External EMC filter (C2)	FN 3359-600-99
Appropriate Ext. AC Input Reactor	LR3 40-3/630
Dimensions H x W x D	1405x400x545 mm

Accessori

MD38PG4

Resolver card, 7Vrms,12bit, no emulation output,10kHz, DB9 connector

MD38PGMD

Encoder card, 5V open collector/differential encoder A+,A-,B+,B-, Z+,Z-, multi emulated output, 100kHz/500kHz, terminal connect

MDBUN-200-5T-INT

External braking unit, rated current 200A, for supply input voltage 380 to 480Vac AC drives

MDBUN-60-5T-INT

External braking unit, rated current 60A, for supply input voltage 380 to 480Vac AC drives

MDBUN-90-5T-INT

External braking unit, rated current 90A, for supply input voltage 380 to 480Vac AC drives

MD38CAN1

CANLink Bus Card, supports only CANlink.

MD38CAN2

CANopen Bus Card, Supports only CANopen.

MD38DP2

PROFIBUS-DP communication card.

MD38TX1

Modbus-RTU communication card.

MD500-ECAT

EtherCAT Interface card, 2x RJ45 (EtherCAT IN/OUT)

MD500-PN1

PROFINET communication card.

MD-SI-DP1

PROFIBUS-DP communication card. (designed for smaller frames)

MD500-EM1

Modbus TCP option card

MD500-EN1

Ethernet/IP communication card.

MD38IO1

I/O extension card 1, provides: 5x DI, 1x AI, 1x relay output, 1x DO, 1x AO, Modbus-RTU and CANlink.

MD38IO2

I/O extension card 2, provides 3x extra DI terminals.

MD38IO3

I/O extension card 3, provides 3x DI, 1x Relay (NO) and Modbus-RTU Interface

MDCAB

Connection cable for LCD/LED remote control 3mt

MD32NKE1

Remote LED keypad for MDBUN Series, MD290, MD500, MD310, MD500E, for parameter programming and monitoring, works with standard RJ45 cable (MDCAB 3.0m inluded)

MDKE9

Remote LCD text indicator for MD200, MD290, , MD310, MD500, MD500-PLUS, MD520, CS710, for parameter programming, parameter copy and backup, USB gateway, works with standard RJ45 cable (MDCAB 3.0m inluded)

CP600-BASE1

MDKE9 keypad installation base on the cabinet door

MDPCKIT02

AC drive PC communication kit, connects to MD200/290/310/500/380/380L/IS580 via RJ45

MD38PC1

PLC card, compatible with Inovance PLC.

FN3359-600-99

High-current EMC/RFI Filter, Three-phase, 600 A, 520/300Vac

LR3 40-3/630

Line reactor, three-phase, 0-690 Vac, 630 A, 50-60 Hz, uk:3%@400 V, 0,04 mH › Ensuring the short-circuit voltage of 3 - 5 % to the mains› Power harmonic damping› Starting current limitation
