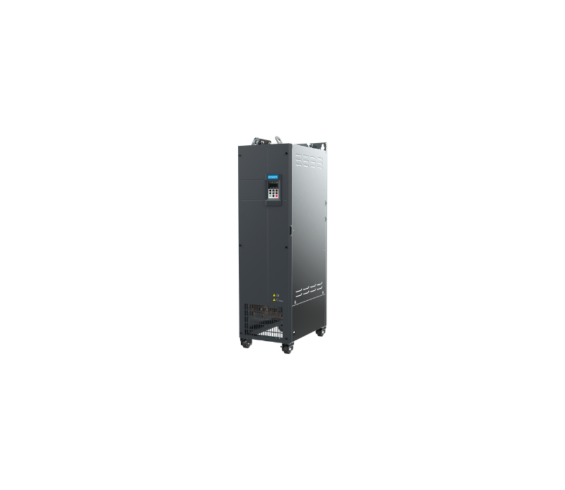

MD500T220G/280P-PLUS-INT

Inverter size T10, 3Phase 380-480V, (Normal duty) Out Power 280kW, Output current 520A or (Heavy duty) Out Power 220kW, Output current 426A
Software:

Dati tecnici

Specifiche

Size Size T10
Control method Open Loop V/F
Open Loop Vector Control
Closed Loop Vector Control
Axes Control Single-Axis
Rated Voltage [V] 400 V three phase
Power (HD) 220 kW
Current (HD) 426 A
Power (ND) 280 kW
Current (ND) 520 A
Overload capacity 150% (60 s) HD - 110% (60 s) ND
Max output frequency 599 Hz
Built-in braking unit MDBUN-200-5T x2
IP IP00
Weight 110 kg
Appropriate External EMC filter (C2) FN 3359-600-99
Appropriate Ext. AC Input Reactor LR3 40-3/500
Dimensions H x W x D 1134x360x500mm

Accessori

MDBUN-200-5T-INT
External braking unit, rated current 200A, for supply input voltage 380 to 480Vac AC drives
MDBUN-90-5T-INT
External braking unit, rated current 90A, for supply input voltage 380 to 480Vac AC drives
MD38CAN1
CANLink Bus Card, supports only CANlink.
MD38CAN2
CANopen Bus Card, Supports only CANopen.
MD38DP2
PROFIBUS-DP communication card.
MD38TX1
Modbus-RTU communication card.
MD500-ECAT
EtherCAT Interface card, 2x RJ45 (EtherCAT IN/OUT)
MD500-PN1
PROFINET communication card.
MD500-EN1
Ethernet/IP communication card.
MD38IO1
I/O extension card 1, provides: 5x DI, 1x AI, 1x relay output, 1x DO, 1x AO, Modbus-RTU and CANlink.
MD38IO2
I/O extension card 2, provides 3x extra DI terminals.
MD38IO3
I/O extension card 3, provides 3x DI, 1x Relay (NO) and Modbus-RTU Interface
MDCAB
Connection cable for LCD/LED remote control 3mt
MD32NKE1
Remote LED keypad for MDBUN Series, MD290, MD500, MD310, MD500E, for parameter programming and monitoring, works with standard RJ45 cable (MDCAB 3.0m inluded)
MDKE9
Remote LCD text indicator for MD200, MD290, , MD310, MD500, MD500-PLUS, MD520, CS710, for parameter programming, parameter copy and backup, USB gateway, works with standard RJ45 cable (MDCAB 3.0m inluded)
CP600-BASE1
MDKE9 keypad installation base on the cabinet door
MD38PC1
PLC card, compatible with Inovance PLC.
FN3359-600-99
High-current EMC/RFI Filter, Three-phase, 600 A, 520/300Vac
LR3 40-3/500
Line reactor, three-phase, 0-690 Vac, 500 A, 50-60 Hz, uk:3%@400 V, 0,04 mH › Ensuring the short-circuit voltage of 3 - 5 % to the mains› Power harmonic damping› Starting current limitation
