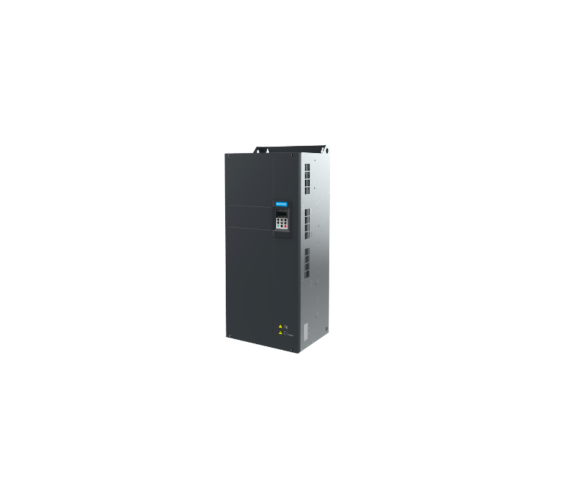

MD500T160G/200P-PLUS-INT

Inverter size T9, 3Phase 380-480V, (Normal duty) Out Power 200kW, Output current 377A or (Heavy duty) Out Power 160kW, Output current 304A

MD500-PLUS_Brochure Singles Web_EN_v0.4.pdf

3 Mb

Software:

Dati tecnici

Specifiche

Size	Size T9
Control method	Open Loop Vector Control Closed Loop Vector Control Open Loop V/F
Axes Control	Single-Axis
Rated Voltage [V]	400 V three phase
Power (HD)	160 kW
Current (HD)	304 A
Power (ND)	200 kW
Current (ND)	377 A
Overload capacity	150% (60 s) HD - 110% (60 s) ND
Max output frequency	599 Hz
Built-in braking unit	MDBUN-200-5T x2
IP	IP20
Weight	85 kg
Appropriate External EMC filter (C2)	FN 3359-400-99
Appropriate Ext. AC Input Reactor	LR3 40-3/300
Dimensions H x W x D	915x400x320mm

Accessori

MDBUN-200-5T-INT

External braking unit, rated current 200A, for supply input voltage 380 to 480Vac AC drives

MDBUN-90-5T-INT

External braking unit, rated current 90A, for supply input voltage 380 to 480Vac AC drives

MD38CAN1

CANLink Bus Card, supports only CANlink.

MD38CAN2

CANopen Bus Card, Supports only CANopen.

MD38DP2

PROFIBUS-DP communication card.

MD38TX1

Modbus-RTU communication card.

MD500-ECAT

EtherCAT Interface card, 2x RJ45 (EtherCAT IN/OUT)

MD500-PN1

PROFINET communication card.

MD500-EN1

Ethernet/IP communication card.

MD38IO1

I/O extension card 1, provides: 5x DI, 1x AI, 1x relay output, 1x DO, 1x AO, Modbus-RTU and CANlink.

MD38IO2

I/O extension card 2, provides 3x extra DI terminals.

MD38IO3

I/O extension card 3, provides 3x DI, 1x Relay (NO) and Modbus-RTU Interface

MDCAB

Connection cable for LCD/LED remote control 3mt

MD32NKE1

Remote LED keypad for MDBUN Series, MD290, MD500, MD310, MD500E, for parameter programming and monitoring, works with standard RJ45 cable (MDCAB 3.0m inluded)

MDKE9

Remote LCD text indicator for MD200, MD290, , MD310, MD500, MD500-PLUS, MD520, CS710, for parameter programming, parameter copy and backup, USB gateway, works with standard RJ45 cable (MDCAB 3.0m inluded)

CP600-BASE1

MDKE9 keypad installation base on the cabinet door

MD38PC1

PLC card, compatible with Inovance PLC.

FN3359-400-99

High-current EMC/RFI Filter, Three-phase, 400 A, 520/300Vac

LR3 40-3/300

Line reactor, three-phase, 0-690 Vac, 300 A, 50-60 Hz, uk:3%@400 V, 0,07 mH › Ensuring the short-circuit voltage of 3 - 5 % to the mains› Power harmonic damping› Starting current limitation
