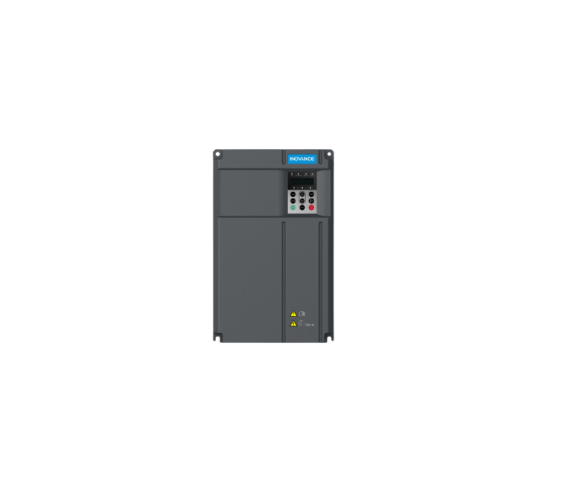

MD200T1.5B-NC
Un=400 VAC, In=4.8 A, P=1.5 kW, Modbus RTU, size A, 2xI/O NPN
Dati tecnici
Specifiche
Size |
Size A |
Control method |
Open Loop V/F Open Loop Vector Control |
Axes Control |
Single-Axis |
Rated Voltage [V] |
400 V three phase |
Communication |
Modbus RTU |
Rated Output Current |
4.5 A |
Power (HD) |
1.5 kW |
Overload capacity |
150% (60 s) - 180% (3 s) |
Max output frequency |
500 Hz |
Built-in braking unit |
V |
IP |
IP20 |
Weight |
1.4 kg |
Appropriate External EMC filter (C2) |
FN 3258-7-44 |
Appropriate Ext. AC Input Reactor |
LR3 40-3/6 |
Dimensions H x W x D |
180x75x145 mm |
Accessori
MDKE9
Remote LCD text indicator for MD200, MD290, , MD310, MD500, MD500-PLUS, MD520, CS710, for parameter programming, parameter copy and backup, USB gateway, works with standard RJ45 cable (MDCAB 3.0m inluded)
CP600-BASE1
MDKE9 keypad installation base on the cabinet door
MDPCKIT02
AC drive PC communication kit, connects to MD200/290/310/500/380/380L/IS580 via RJ45
MDKE8
Remote LED keypad for MD200, for parameter programming and monitoring,
potentiometer for speed control, works with standard RJ45 cable (MDCAB 3.0m inluded)
FN3258-7-44
Ultra-compact Line Filter EMC/RFI, Three-phase, 7 A, 480/277Vac
LR3 40-3/6
Line reactor, three-phase, 0-690 Vac, 6 A, 50-60 Hz, uk:3%@400 V, 3,7 mH › Ensuring the short-circuit voltage of 3 - 5 % to the mains› Power harmonic damping› Starting current limitation› Increases
