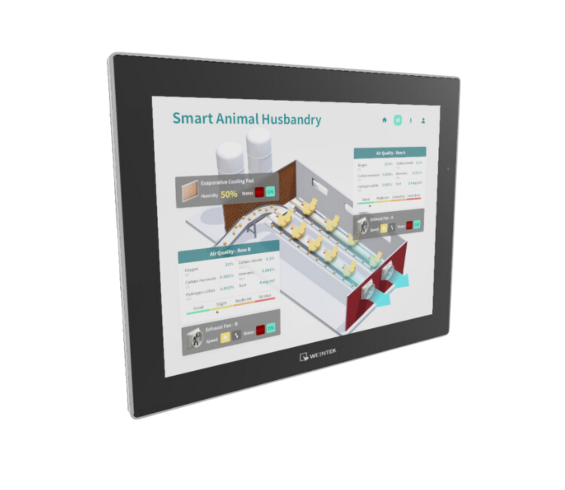

cMT3152X

HMI da 15" IPS, 1024x768, CPU RISC quad-core 1.6GHz, 2 Ethernet, CANBus, SD, supporta OPC UA, MQTT. CE e UL certificati

Software:

Specifiche

Type of module	Con Display
Applications	Advanced Model
Display Size	15.0” WVA
Dimensions W x H x D	366 x 293 x 51.5
Resolution	1024 x 768
Contrast Ratio	2500: 1
Processor	Quad-core RISC
RTC	Built-in
Flash	4 GB
RAM	1 GB
Brightness	350 cd/㎡
Colors	16.2M
Backlight Type	LED
Backlight Life Time	>70,000 hrs.
LCD Viewing Angle (T/B/L/R)	88/88/88/88
Pixel Pitch (mm)	0.297(H) x 0.297(V)
Touch Panel Type	Tempered Glass, Capacitive Type
SD Card Slot	SD/SDHC
USB Host	USB 2.0 x 1
Ethernet	10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1
Weight	Approx. 2.85 kg Panel mount,
COM A	COM1 RS-485 2W/4W, COM3 RS-485 2W
COM B	COM1 RS-232 4W, COM3 RS-232 2W
RS-485 Dual Isolation	Yes
Modbus RTU/TCP	Yes
CAN Bus	Yes
Audio Output	Built-in Mono Speaker Audio Line Out - 3.5 mm jack x 1
Input Power	24±20%VDC
Enclosure	Front bezel: Plastic, Rear Enclosure: Aluminum
Panel Cutout	352 x 279 mm
Mount	VESA mount 75 x 75 mm
Protection Structure	NEMA4 / IP66 Compliant Front Panel
Storage Temperature	-20° ~ 60° C (-4° ~ 140° F)
Operating Temperature	0° ~ 50° C (32° ~ 122° F)
Relative Humidity	10% ~ 90% (non-condensing)
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
CE	CE marked
UL	cULus Listed
Teleassistance	EasyAccess 2.0 included
Dashboard	Optional
Database Recipes	included
SQL Query	included
Client OPC UA	included
Server OPC UA	included
MQTT IoT	included
Codesys	Optional
VNC	included
