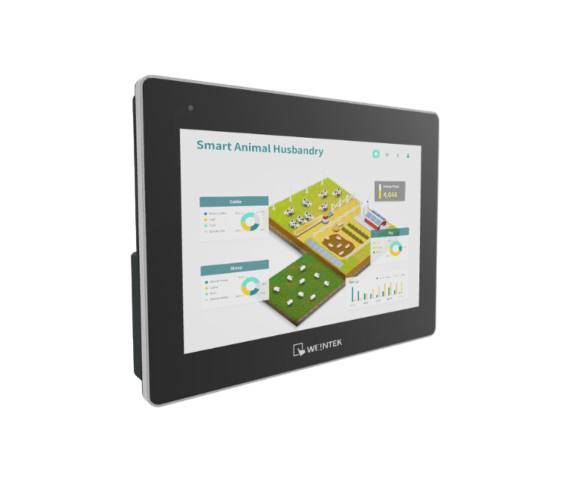

cMT3108XP

HMI da 10.1" capacitivo, WVA 1280x800, CPU Cortex quad-core 1.6GHz, 2 Ethernet, CANBus, alimentazione 24±20% VDC, supporta OPC UA, MQTT

Software:

Specifiche

Type of module	Con Display
Applications	Advanced Model
Display Size	10.1” WVA
Dimensions W x H x D	266 x 196 x 42.7
Resolution	1280 x 800
Contrast Ratio	800:1
Processor	Quad-core RISC
RTC	Built-in
Flash	4 GB
RAM	1 GB
Brightness	425 cd/㎡
Colors	16.7M
Backlight Type	LED
Backlight Life Time	>50,000 hrs.
LCD Viewing Angle (T/B/L/R)	89/89/89/89
Pixel Pitch (mm)	0.1695 (H) x 0.1695 (V)
Touch Panel Type	Tempered Glass, Capacitive Type
USB Host	USB 2.0 x 1
Ethernet	10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1
Weight	Approx. 1.1 kg Panel mount,
COM A	COM1 RS-485 2W/4W, COM3 RS-485 2W
COM B	COM1 RS-232 4W, COM3 RS-232 2W
Modbus RTU/TCP	Yes
CAN Bus	Yes
Audio Output	Built-in Mono Speaker
Input Power	24±20%VDC
Enclosure	Plastic
Panel Cutout	255 x 185 mm
Mount	VESA mount 75 x 75 mm
Protection Structure	NEMA4 / IP66 Compliant Front Panel
Storage Temperature	-20° ~ 60° C (-4° ~ 140° F)
Operating Temperature	0° ~ 55° C (32° ~ 131° F)
Relative Humidity	10% ~ 90% (non-condensing)
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
CE	CE marked
WI-FI	M02 WiFi Module_x000D_ (Optional)
Teleassistance	EasyAccess 2.0 (Optional)
Dashboard	Optional
Database Recipes	included
SQL Query	included
Client OPC UA	included
Server OPC UA	included
MQTT IoT	included
Codesys	Optional
VNC	included
