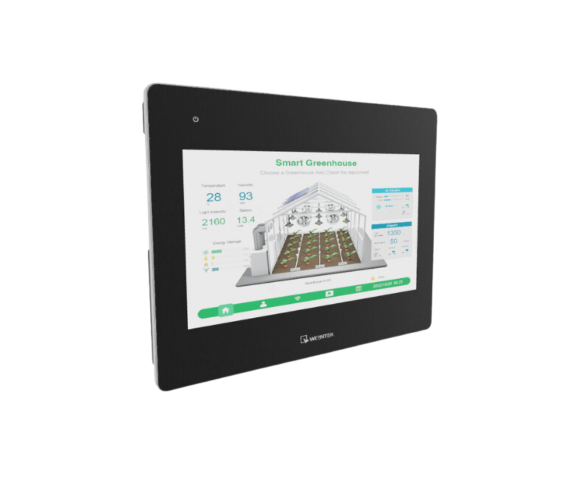

cMT3102X

HMI da 10.1" 1024x600, quad-core RISC, CANbus, dual Ethernet, USB, supporta OPC UA, MQTT. Con modulo WiFi opzionale per wireless

Software:

Specifiche

Type of module	Con Display
Applications	Advanced Model
Display Size	10.1” TFT
Dimensions W x H x D	271 x 213 x 38
Resolution	1024 x 600
Contrast Ratio	500:1
Processor	Quad-core RISC
RTC	Built-in
Flash	4 GB
RAM	1 GB
Brightness	350 cd/㎡
Colors	16.7M
Backlight Type	LED
Backlight Life Time	>50,000 hrs.
LCD Viewing Angle (T/B/L/R)	70/70/80/80
Pixel Pitch (mm)	0.2175 (H) x 0.2088 (V)
Touch Panel Type	4-wire Resistive
Accuracy	Type Active Area Length(X)±2%, Width(Y)±2%
USB Host	USB 2.0 x 1
Ethernet	10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1
Weight	Approx. 1.2 kg Panel mount,
COM A	COM1 RS-485 2W/4W, COM3 RS-485 2W
COM B	COM1 RS-232 4W, COM3 RS-232 2W
Modbus RTU/TCP	Yes
CAN Bus	Yes
Input Power	24±20%VDC
Enclosure	Plastic
Panel Cutout	260 x 202 mm
Mount	VESA mount 75 x 75 mm
Protection Structure	UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
Storage Temperature	-20° ~ 60° C (-4° ~ 140° F)
Operating Temperature	0° ~ 50° C (32° ~ 122° F)
Relative Humidity	10% ~ 90% (non-condensing)
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
CE	CE marked
UL	cULus Listed
WI-FI	M02 WiFi Module_x000D_ (Optional)
Teleassistance	EasyAccess 2.0 (Optional)
Dashboard	Optional
Database Recipes	included
SQL Query	included
Client OPC UA	included
Server OPC UA	included
MQTT IoT	included
Codesys	Optional
VNC	included
