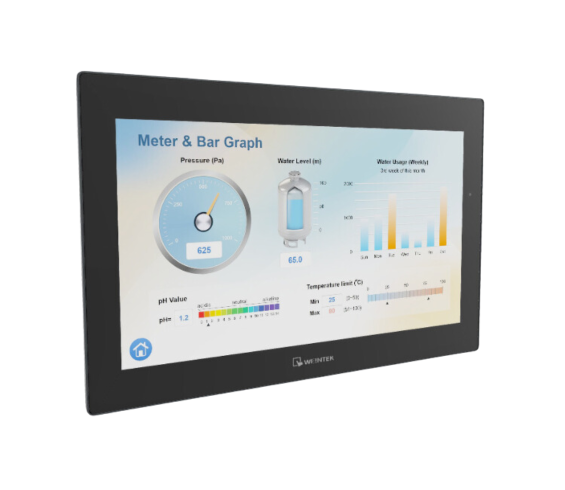

cMT2166X

HMI da 15.6" FHD IPS, 1920x1080, CPU Cortex A17, touch capacitivo, 1GB RAM/4GB Flash, Ethernet, USB, RS232/485

Software:

Specifiche

Type of module	Con Display
Applications	Standard Model
Display Size	15.6” WVA
Dimensions W x H x D	400 x 263 x 27.6 mm
Resolution	1920 x 1080
Contrast Ratio	800: 1
Processor	Quad-core RISC
RTC	Built-in
Flash	4 GB
RAM	1 GB
Brightness	300 cd/㎡
Colors	16.2M
Backlight Type	LED
Backlight Life Time	>30,000 hrs.
LCD Viewing Angle (T/B/L/R)	89/89/89/89
Pixel Pitch (mm)	0.17925(H) x 0.17925(V)
Touch Panel Type	Tempered Glass, Capacitive Type
USB Host	USB 2.0 x 1
Ethernet	10/100 Base-T x 1
Weight	Approx. 1.6 kg
COM A	COM1 RS-485 2W/4W, COM3 RS-485 2W
COM B	COM1 RS-232 4W, COM3 RS-232 2W
Modbus RTU/TCP	Yes
Audio Output	Built-in Mono Speaker
Input Power	24±20%VDC
Enclosure	Front bezel: Plastic, Rear Enclosure: Aluminum
Panel Cutout	384 x 247 mm
Mount	Panel mount, VESA mount 100 x 100 mm
Protection Structure	NEMA4 / IP66 Compliant Front Panel
Storage Temperature	-20° ~ 60° C (-4° ~ 140° F)
Operating Temperature	0° ~ 50° C (32° ~ 122° F)
Relative Humidity	10% ~ 90% (non-condensing)
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
CE	CE marked
Teleassistance	EasyAccess 2.0 (Optional)
Dashboard	Optional
Database Recipes	included
Client OPC UA	included
MQTT IoT	included
VNC	included
